Measurement electronics for application-specific boards

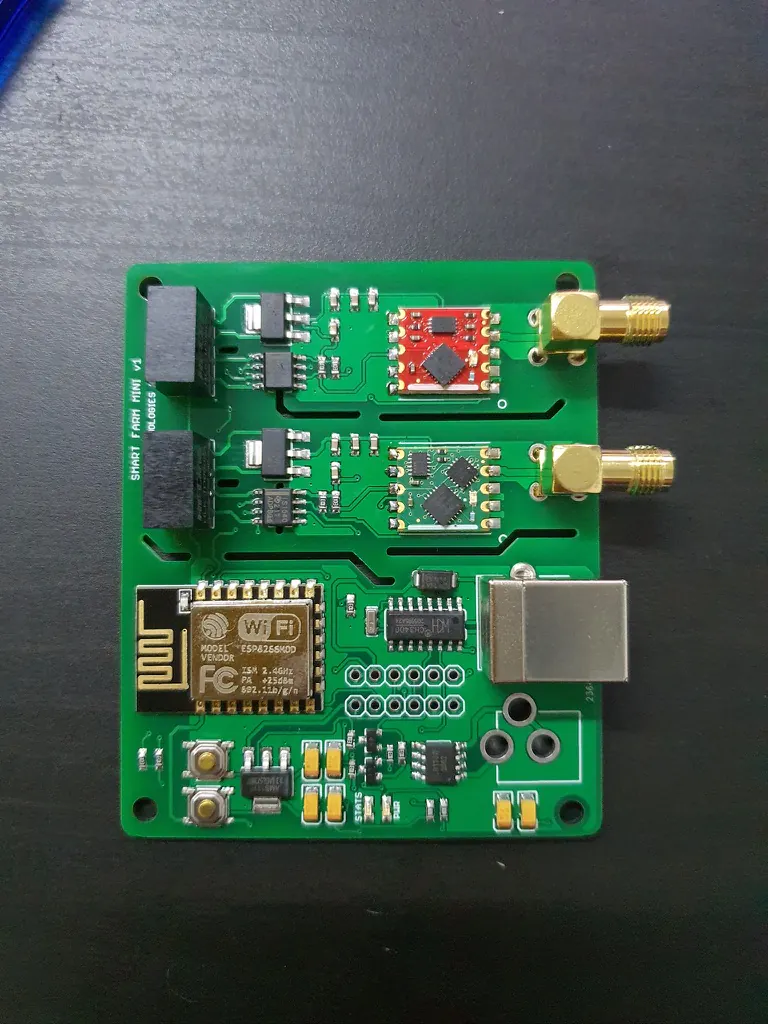

Baztech’s integration experience includes Atlas Scientific pH, conductivity and temperature measurement electronics in custom boards. The named devices include the ENV-50-pH industrial pH probe with temperature measurement, pH-OEM circuit, ENV-40-EC-K1.0 conductivity probe and EC-OEM circuit.

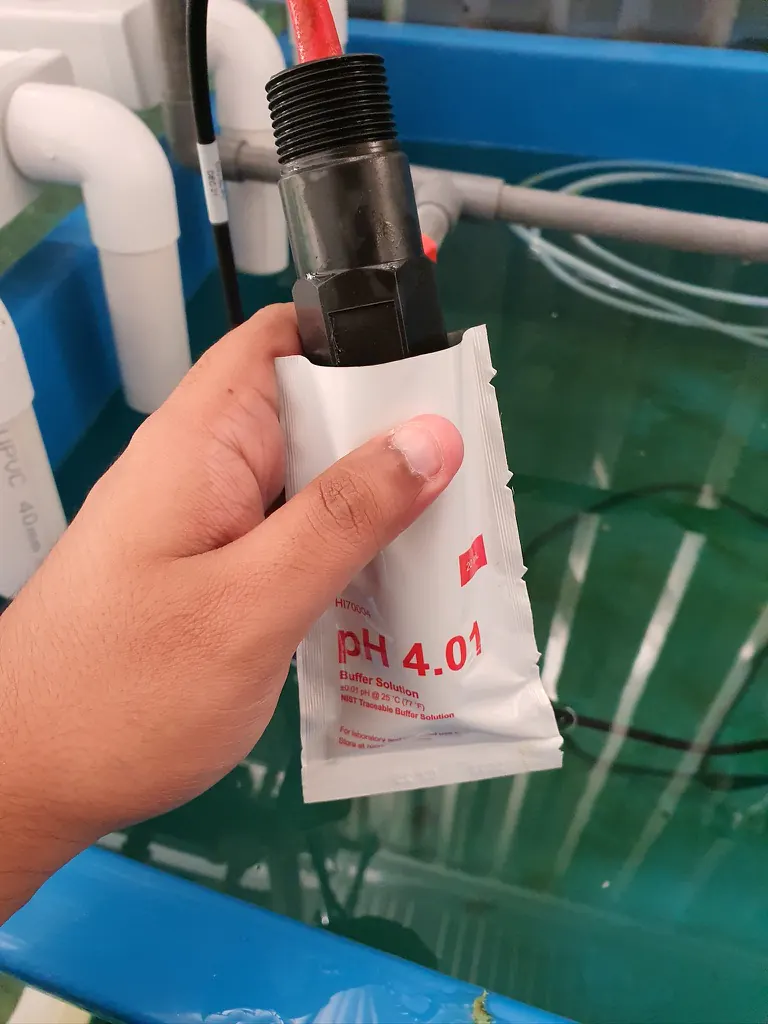

The OEM measurement circuits form part of the electronic integration work around the probes. Probe selection, calibration and the intended liquid should be reviewed together; a circuit’s published specification is not a complete guarantee for an installed measurement system.
Our related air-monitoring work uses EZO-CO2 and EZO-O2-S devices for carbon dioxide and oxygen in air. The EZO-O2-S discussed here is a gas oxygen sensor, not a dissolved-oxygen probe.
Connection to smart dosing
Our team has contributed to dosing work using venturi and peristaltic approaches for A/B fertiliser and pH-up/pH-down solutions, including inline and batch-mixing applications. The photographs show the measurement hardware and dosing context; each new installation needs its own engineering design.
Questions about this integration
Can pH and EC measurement be incorporated into a custom PCB?
Yes. Baztech can discuss the probe, measurement electronics, power, interfaces and application requirements as part of a custom design scope.
Is the air oxygen device suitable for dissolved oxygen?
It measures oxygen in gas. A dissolved-oxygen requirement needs a different device selection.
